High Voltage Vacuum Degree Test Equipment
Basic Info.
| Warranty | 1 Year |
| Application | Circuit Breaker Analyzer |
| Measuring Range | 10 -5 ~10 -1 PA |
| Applicable Circuit Breakers | Indoors, Outdoors, Gis Circuit Breaker |
| Measurement Accuracy | 10% |
| Transport Package | Veneer Case |
| Specification | 68*46*57CM |
| Trademark | Gold |
| Origin | Chongqing |
| HS Code | 9031809090 |
| Production Capacity | 200PCS/Month |
Product Description

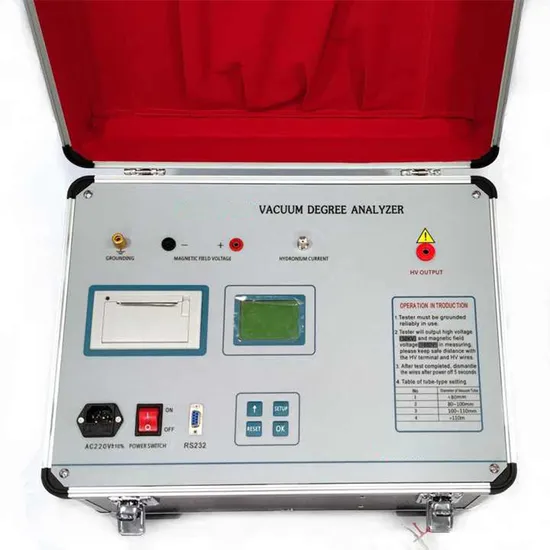

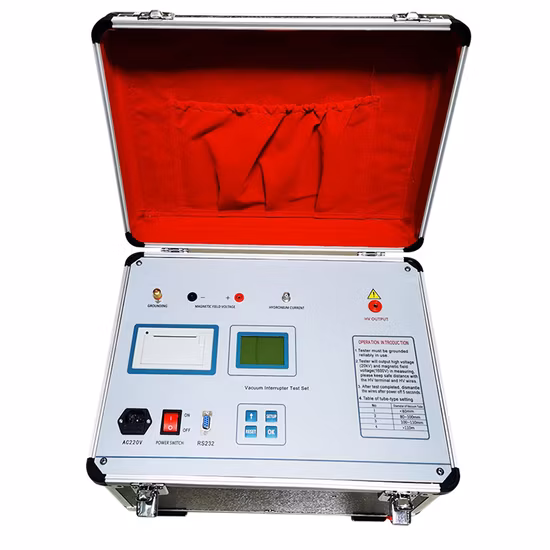

High voltage circuit breaker vacuum degree tester switchgear vacuity tester
General introduction:
GDKZ-IV High Voltage Circuit Breaker Vacuum Degree Tester, High Voltage Switchgear Vacuity Tester can direct quantitative measuring vacuum degree of vacuum switch interrupter without removing. It can not only measure the normal range of vacuum degree of switchgear, but also can measure some vacuum switches which leak faster. Comparing with the measuring results of past years, its life can generally be inferred, prevent accidents.
GDKZ-IV High Voltage Circuit Breaker Vacuum Degree Tester, High Voltage Switchgear Vacuity Tester is compact, lightweight and compact models, short test time, reliable measurement results, good stability, high precision, fully functional.
It is the ideal instrument for quantitative measuring vacuum switches.
Specifications:
| 1 | Test objects | various models of vacuum switch |
| 2 | Test method | sing new excitation coil and detect vacuum tube without disassembly |
| 3 | Application area | measure the vacuum of variety models of open magnetic vacuum tube |
| 4 | Detection range | 10 -5 ~10 -1 Pa |
| 5 | Measurement accuracy | 10 -5 -10 -4 Pa, 10% 10 -4 -10 -3 Pa, 10% 10 -3 -10 -2 Pa, 10% 10 -2 -10 -1 Pa, 10% |
| 6 | Magnetic field voltage | 1700V |
| 7 | High-voltage of pulsed electric field | 30KV |
| 8 | Open distance of switch tube in vacuum test | normal open distance |
| 9 | Testing environment | -20ºC~ 40ºC |
| 10 | Weight | 12kg |
| 11 | Dimension | 420 × 320 × 280 (mm) |
| 12 | Sampler | magnetic coil |
More details for High voltage circuit breaker vacuum degree tester switchgear vacuity tester:
Accessories1. Magnetic coil: 1 2. Special test wire: 5 3. Coil lanyards:1 4. Power Line:5. Instruction manual: 1, Certificate : 16. Elastic straps: 17. Ribbon: 18. Printing paper: 2 laps
