Overview Product Description VS1-12 Indoor High Voltage Vacuum Circuit Breaker is three-phase AC 50Hz, Rated voltage of
Overview
Basic Info.
Model NO. vs1
Poles Number 3
Type Circuit Breaker
Function Vacuum Circuit Breaker
Certification ISO9001-2000, CE, CCC
Rated Current 630A~4000A
Standard IEC 60898
Bcd Curve D
Rated Frequency 50Hz
Mechanical Life 10000 Times
Rated Voltage 12kv
Transport Package Export Standard Wooden Case
Specification 310*681*638MM
Trademark CHSH
Origin China
HS Code 8535900000
Production Capacity 500 Pieces/Week
Product Description
Product Description

VS1-12 Indoor High Voltage Vacuum Circuit Breaker is three-phase AC 50Hz, Rated voltage of 12kV indoor device, For industrial and mining enterprises, power plants and substations as electrical equipment control and protection purposes, and for frequent operation of the place. It can be fixed in a switch cabinet or installed on a handcart. Stable performance and easy installation.
Applying Ambient Conditions:
• Ambient temperature: not higher than +40°C, not less than −10°C (at −30°C to allow storage and transportation).

• Altitude: not exceed 1000m.

• Relative humidity: daily average of not more than 95%, saturated vapor pressure on the average of not more than 2.2×10-3MPa, On average not more than 1.8× 10-3MPa.

• Earthquake intensity: not more than eight.

• No fire, explosion hazard, serious filthy, chemical corrosion, as well as places of intense vibration.

Product Parameters

Medium Voltage Indoor Vacuum Circuit Breakers

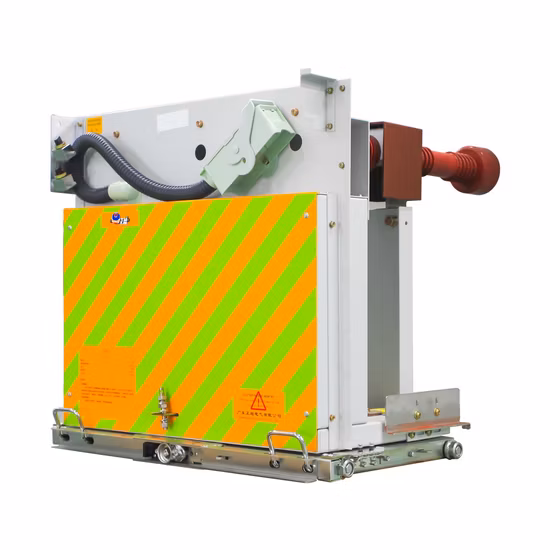

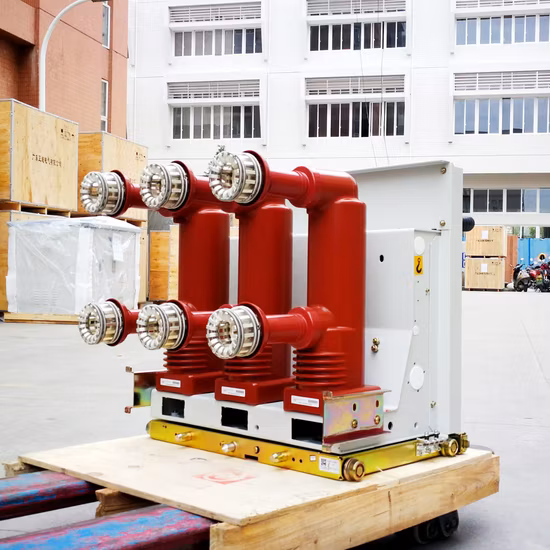

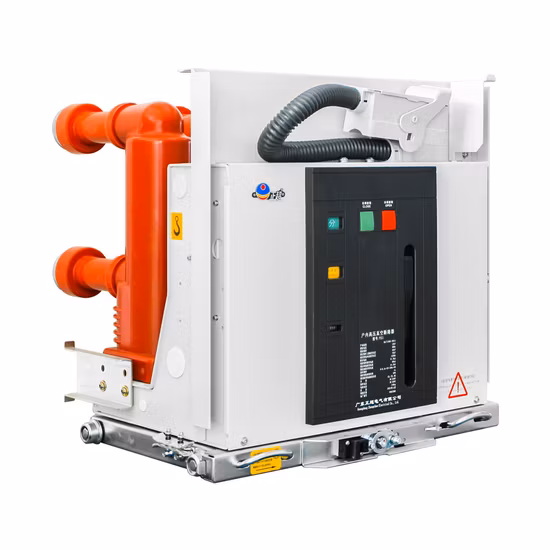

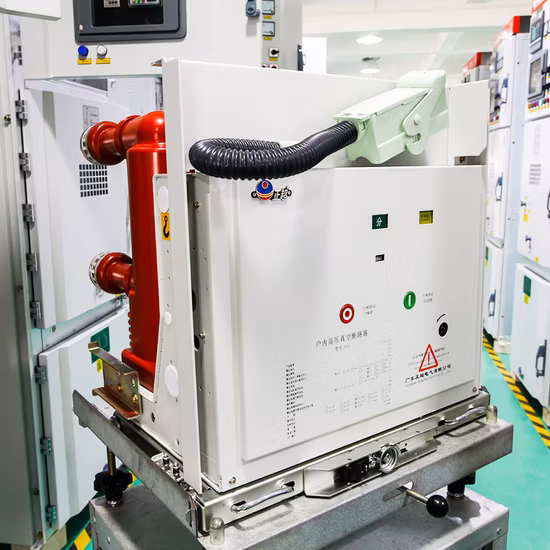

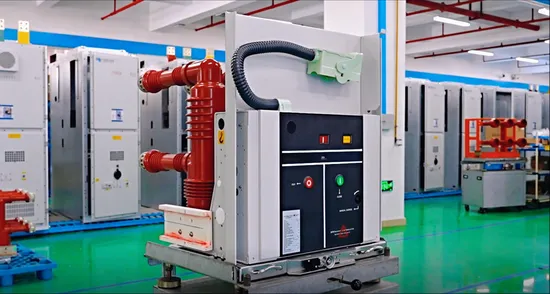

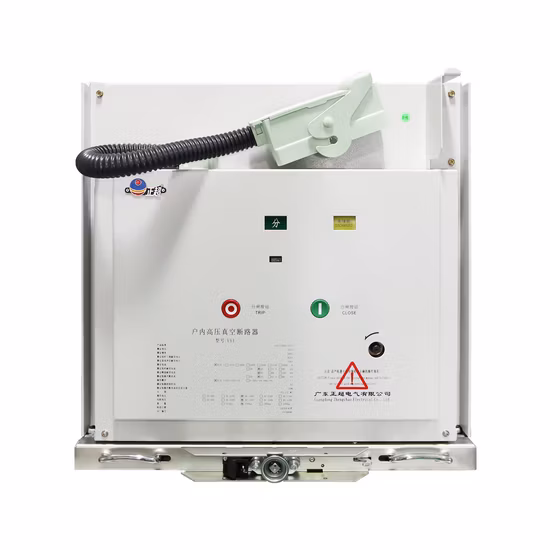

Detailed Photos

Medium Voltage Indoor Vacuum Circuit Breakers

Medium Voltage Indoor Vacuum Circuit Breakers

Medium Voltage Indoor Vacuum Circuit Breakers

Medium Voltage Indoor Vacuum Circuit Breakers


Company Profile


Shenheng Power Equipment CO., LTD is a company specializing in the production of high and low voltage switch power transmission and distribution equipment and high, low voltage electrical components, one of the professional production enterprises, the production of all fully insulated and fully sealed inflatable cabinet, intelligent solid insulation ring main unit, outdoor high voltage cable branch box, box-type substation, etc. Product quality is stable, reliable, It is deeply trusted and approved by the customers.

Manufacturing of the main products are YBW box-type substation, KYN61-40.5, KYN28A - 24, KYN28A - 12, XGN2-10, HXGN-10 high voltage switchgear, XGN ring net cabinet, SHSRM inflatable ring main unit, SHSG solid ring main unit, MNS, GCS, GCS, GGD, XL low voltage switchgear , vacuum circuit breaker , oil immersed transformer , dry type transformer , current /potential transformer ,load break switch and other transmission and distribution equipment.

For a long time also for all kinds of metallurgy, shipbuilding, electric power, mining, and intelligent buildings, high-rise buildings, hospitals, schools and other industries to provide high quality power transmission and distribution of complete sets of equipment and electrical control equipment. The company has a strong technical force, sophisticated technology and sophisticated testing methods, and the products sell well across the country.


Company Workshop

CertificationsPackaging & Shipping
FAQ

1. Are you a trading company or manufacturer ?We are a professional factory with 10 years experience in the field of High and low Voltage switchgears, Substation ,transformers,cable distribution box and various electrical equipment, such as vacuum circuit breaker , load break switch etc.Our factory is the excellent supplier of State Grid Corporation od China .
2. Do you accept customized serveice ?We offer OEM/ODM service , can print your logo on product . our professional technical and quotation team can provice a satisfied project according to your drawing and parameters .3. What is your MOQ?Our MOQ is 1 piece.4. How long is your delivery lead time ?It depends on your product requirement and quantity . Generally , 5~10 working days is avaliable .5. How do you solve quality problems?Please porvide detailed photoes of quality problems. our technical and quality testing department will analyse.we will make a satisfied soluton within 2 days .6. What is your payment terms ?30%T/T in adcance,70% before shipment . West union , L/C are also acceptable .
