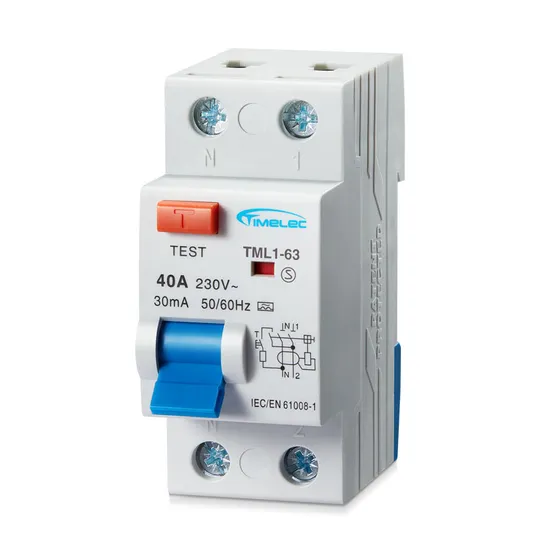

F360 2p 230V RCCB Circuit Breaker 6000A 2 Pollution Degree

Basic Info.

Model NO.	ST360
Arc-extinguishing Medium	Air
Installation	DIN Rail
Structure	ELCB
Poles Number	4
Type	Circuit Breaker
Function	Conventional Circuit Breaker, Circuit-Breaker Failure Protection, Overcurrent Protection, OVP(Overvoltage Protection), RCCB
Certification	CE
in	16,25,32,40,,63A
Pole	2p 4p
Standard	IEC 61008
Transport Package	Inner Box/Carton
Specification	100pcs/ctns
Trademark	SONTUOEC, WZSTEC, SONTUNE
Origin	Wenzhou Zhejiang
HS Code	853620000
Production Capacity	2000pieces/Day

Packaging & Delivery

Package Size 46.00cm * 24.00cm * 33.00cm Package Gross Weight 0.025kg

Product Description

ST360 residual current circuit breaker is in conformity with the standards of IEC61008.It can cut off the fault circuit immediately on the occasion of shock hazard or earth leakage of trunkline.Thus it is suitable to avoid the shock hazard and fire caused by earth leakage.It can be used in circuits up to single phase 240V,three phase 415V,50 or 60Hz.

Product Over View:

1.Provide protection against earth fault/leakage current and function of isolation

2.High short-circuit current withstand capacity

3.Applicable to terminal and pin/fork type busbar connection

4. Equipped with finger protected connection terminals

5.Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity

6.Independent of power supply and line voltage, and free from external interference, voltage fluctuation.

Model	Electronic type/magnetic type
Residual Current characterstics	A/AC
Pole No	2P/4P
Rated Current(A)	16A,20A,25A,32A,40A,63A
Rated Voltage(V)	240/415V
Rated residual operating current	10ma,30ma,100ma,300ma,500ma
Rated conditional residual short circuit current	6KA
Electro-machanical endurance	over 4000 cycles

Sandard			IEC/EN61008
Electrical features	Type(wave form of the earth leakage sensed)		Electro-magnetic type, electronic type
	Rated current In	A	A,AC
	Poles	P	2,4
	Rated voltage Us	V	AC 240/415
	Rated sensitivity I△n	A	0.01,0.03,0.1,0.3,0.5
	Insulation voltage Ui	V	500
	Rated residual making and breaking capacity I△m	A	630
	Short-circuit current I△c	A	6000
	SCPD fuse	A	6000
	Rated frequency	Hz	50/60
	Pollution degree		2
Mechanical features	Electrical life	t	4000
	Mechanical life	t	10000
	Protection degree		IP20
	Ambient temperature (with daily average ≤35ºC)	ºC	-25~+40
	Storage temperature	ºC	-25~+70
Installation	Terminal connection type		Cable/U-type busbar/pin-type busbar
	Terminal size top/bottom for cable	mm2	25
		AWG	18-3
	Terminal size top/bottom for busbar	mm2	25
		AWG	18-3
	Tightening torque	N*m	2.5
		In-lbs	22
	Mounting		On DIN rail EN 60715(35mm)by means of fast clip device
	Connection		From top and bottom
